RFRain Advanced Reader

True plug and play. Start reading your tags automatically using a browser and the Zone Manager software on the Advanced
Reader

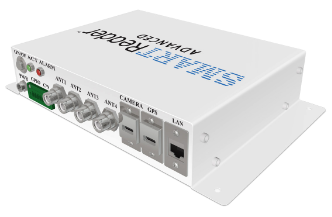

RFRain Advanced Reader

RFRain Advanced Reader

Plug-and-Play Smart Reader:
Reader, Gateway and pre-installed software in one device

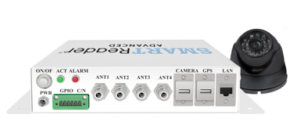

The RFR-RAIN-4-SMART-ADV is a 4-port RFID reader that combines a reader, gateway and software in one single device. Access and control the reader from any browser using the built-in UI, the Zone Manager and start reading tags instantly – no programming required. in addition to the Smart Reader, The Advanced reader comes with a GPIO for access control and 2 USB slots for camera and GPS. The Advanced reader comes with a 1,820 mAh built-in battery.

Designed for remote access control and detecting tags on mobile applications. Used in applications for trucks and forklifts.

Incredible RF performance
Read tags at 100 mph with Fast Track

Empowered by the R2000 chip, The RFRain Advanced Reader (RFR-RAIN-4-SMART-ADV) covers a tag read distance that is over 80 feet with 9 dBiL antenna. It supports the tag read speed for mooving objects at 100 mph. With the 1,820 mAh built-in Li-on battery keep the reader running when a moving vehicle or a forklift experience frequent stops.

Zone Manager Software™
Built-in UI. No programming required.

Unlike other RFID readers in the market, our Smart Readers are pre-configured with the Zone Manager software and provide you with real-time data access to your asset information and location. The RFR-ZM Zone Manager software provides full reporting capabilities and data portability, and integrates seamlessly with enterprise management systems using Rest API. We made RFID easy for you.

  • Manage inventory in real time 24/7.
  • Create employee logins.
  • Receive alerts, text messages and email notifications
  • Scalable platform
  • Access from anywhere in the world and from any device with the Zone Manager Enterprise cloud-based software
  • Enable remote Access Control
  • Control the reader using the extended RFRain REST API

RFR-RAIN-4-SMART-ADV Specifications

COMMUNICATION
RFRain REST API
AVAILABLE REGIONS
NA, SA, CE and MENA regions
RFID PROCESSOR
Indy R2000
ANTENNA CONNECTOR
4 connectors supporting 4 monostatic antennas
RF POWER OUTPUT
5 dBm to 31.5 dBm
BUILT-IN BATTERY
1820 mAh lithium-ion battery
MAX TAG READ RATE
Up to 750 tags/second
MAX TAG READ DISTANCE
Over 80 feet (24 m) with 9 dBiL antenna
MAX TAG READ RATE
100 mph with Fast Track
