Description

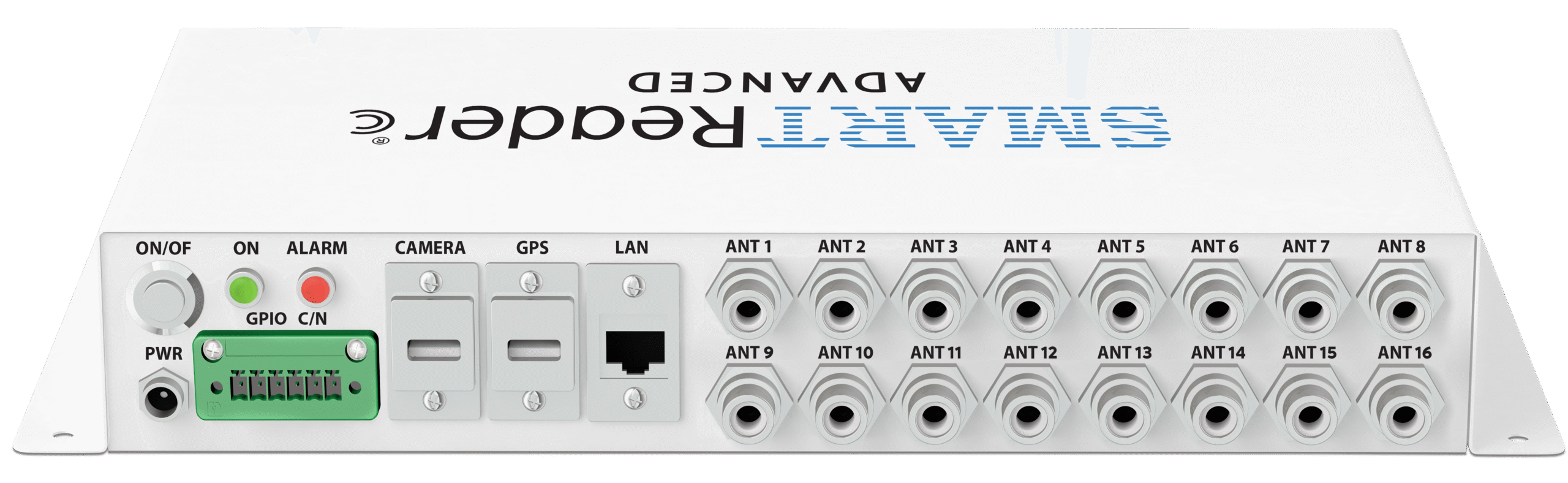

The RFRain Smart Reader (RFR-RAIN-16-SMART-ADV-C) is a 16-port reader, that covers a tag read distance of over 80 feet with with 9 dBiL antenna. Access and control the reader from any browser using the built-in UI. Access the reader via Ethernet, WIFI or cellular connection.
All sales are backed with 30 days money back guarantee. We stand by our products 100%.

Reviews

There are no reviews yet.

Be the first to review “RFR-RAIN-16-SMART-ADV”

Your email address will not be published. Required fields are marked *

Zone Manager Software
The Zone Manager Software comes pre-installed with the Smart Reader and enables full interoperability of each Smart Reader and provides a complete set of features to help you monitor and track 1000’s of assets in a few seconds . The reader license is sold per Smart Reader and is charged on a yearly basis. Includes free software upgrades. 1-year hardware warranty included.
RFRain Web Services
The RFRain Web Services (RWS) is a user-centric software application and make it really easy to monitor and organize your assets and data in the cloud or on-premise. The RWS provides the location of yours assets in real-time. In addition, the RWS allows you to store , search receive and send alerts, and add custom information for each asset, In many instances, running in AWS or Azure using JSON post alert push notifications. Finally, the RWS can be used as a standalone application for companies, that have limited IT resources.
Summary of Datasheet
The RFR-RAIN-16-SMART ADV is a high-density RFID reader designed for large-scale and complex asset tracking environments. It features sixteen RP-TNC monostatic antenna ports, pre-installed Zone Manager software, and RFRain REST API support. It operates in Server Mode, Enhanced Server Mode, and Write Mode, with capabilities like RSSI, brown-out recovery, live upgrades, and browser-based standalone configuration. It supports EPC-global UHF Class 1 Gen 2 (ISO 18000-6C) tags with anti-collision, DRM, and anti-jamming technology. RF power is adjustable from 10–30 dBm, delivering up to 700 tags/second and an 80 ft (24 m) read range. Powered by the Indy R2000 processor, it includes 4 GB RAM and up to 64 GB extended flash storage. Connectivity includes GPIO, dual USB 2.0, Ethernet, Wi-Fi, built-in access point, and PoE+. Housed in a durable aluminum enclosure and certified for multiple global regions, it operates in -20°C to +65°C environments. Optional features include GPS, a 1 MP camera, access control, audible alerts, and isolated GPIO ports. Download Datasheet
Purchasing Information
The purchase of the RFRain Web Services (RWS) includes Advanced Database Support. RFR-EMAIL-TXT-PUSH is required with the purchase of the Access Control feature. Each Reader comes with a built-in Zone Manager UI with Rest API support.

RFR-RAIN-16-SMART-ADV

  • Product Code: RFR-RAIN-16-SMART-ADV-C

Starting at

$3,825.00

On Premise / Cloud Data Access
Additional Options ( Optional )
Product total
Options total
Grand total
